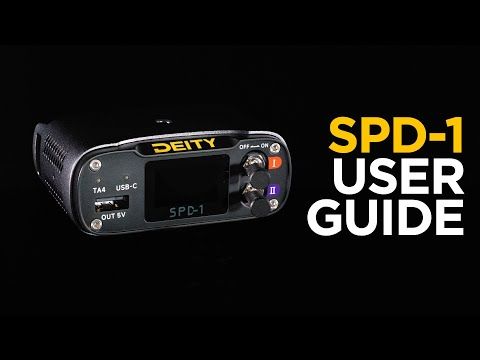

Deity SPD-1 Smart Power Distributor

DTE0287D90

The Deity Microphones SPD-1 is a compact and lightweight power distribution box for managing power in large sound bags or on small location sound carts.

• Manage Power in Sound Bag or Sound Cart
• 12 to 18V for Wide Range of Devices
• Supports Smart and Non-Smart Batteries
• 2 x TA4 Inputs + USB-C Input
• 6 x Unregulated Hirose Power Outputs
• Front-Facing USB-A 5V/2A Output
• 2 x Power Circuit Groups
• 1.1" TFT Color Screen
• Displays Battery Telemetry Data
• Lightweight Aluminum Housing, Belt Clip

With its triple DC inputs, hot-swappable functionality, support for both smart and non-smart batteries, seven power-output ports, and the ability to display battery telemetry data, the SPD-1 is designed to make your life on set as easy and stress-free as possible.

Triple DC Inputs

• Two TA4F Power Inputs: SPD-1 is compatible with any battery ranging from 12 to 18V. Users can hot swap between the two TA4 power inputs.
• USB-C Power Input: the USB-C input port is capable of providing regulated 12V into your system from wall power—useful when you are stationed in one place for a while and don’t want to use batteries.
• Verify that your USB-C power supply supports the 12V USB-C power standard and supplies enough watts. A USB-C laptop-style power supply is suggested.

Seven Power-Output Ports, Over Two Circuit Groups

• The six, unregulated 4-pin Hirose power-output ports enable you to power multiple devices simultaneously.
• The ports are divided across two power circuit groups (Group I and II), each with its own locking toggle switch switches, making it easy to turn your devices on and off without needing to power down your primary devices.
• The SPD-1 features an easy-access, front-facing 5V/2A USB-A port, making it simple to charge your devices and keep them powered up.

Two Locking Power Switches

• Locking toggle switches make turning your devices on and off easy and safe, and they help prevent accidental power-downs.
• Group I Power Switch: Enables the Group I power outputs.
• Group II Power Switch: Enables the Group II power outputs.
• Pull and toggle right/left to enable or disable the power outputs Group I and II.

Smart Battery Telemetry Display to Monitor Power on Set

• The SPD-1 displays battery telemetry data to keep track of your power usage. Monitoring power on set is crucial to keeping production running smoothly. With the SPD-1, you can easily keep track of your power usage, ensuring you never run out of power at the wrong time.
• The 1.1” color screen provides you with all the information you need, like total power consumption, battery temperatures, voltage, battery life, and battery cycle count.
• Included is an SPD-T4BATT TA4F to HiQ Battery CupF, specifically designed to hold a 2054 smart battery, known for its reliability and long battery life (battery available separately).

Versatile Mounting Options

• The SPD-1 features dual 1/4”-20 threaded mounts, allowing you to mount the device in any position securely.
• The included reversible mounting clip makes it easy to change the device’s orientation as needed.

Wide Compatibility

• Sound Devices 633, 664, 688, MX-HIROSE DC input sled
• Sound Devices A10-RX A-TA3 adapter, A10-RX A-XLR
• Zaxcom Nova, Nova 2, Deva 24
• Zoom F8, F8n, F8n Po, F4
• Lectrosonics SREXT SR mounting kit, DSR4EXT, DCR822
• Wisycom MCR54 end plate
• MiPro MR-90SC
• Sony UWP-D

Multiple Batteries Supported

• The SPD-1 supports both smart and non-smart batteries with its triple DC inputs and hot-swappable functionality.
• When using a non-smart 14.4V or USB-C battery, the SPD-1 will display incoming voltage.
• The screen on the SPD-1 adapts its displayed data to the type of power you supply.
• Supported batteries include: Audio Root, Deity S-95, Inspire Energy, Remote Audio HiQ, RRC, Sound Device Smartbattery

SPD-1 Power Distribution at a Glance

• For large sound bags and small sound carts
• Triple DC inputs, hot-swappable
• Two TA4F inputs; one USB-C input
• Six 4-pin push unregulated outputs
• Easy-access USB-A charging port
• Suggested operating range is 12 to 18V
• Supports smart and non-smart batteries
• Displays battery telemetry data
• Measures total power consumption
• Two power circuit groups with locking toggle switches
• Lightweight aluminum housing
• 1.1" color screen
• Dual 1/4"-20 threaded mounts
• Reversible mounting clip

In the Box

• Deity Microphones SPD-1 Smart Power Distributor
• SPD-T4BATT TA4F to HiQ Battery CupF
• Reversible Belt Clip
• Deity Logo Sticker

The Deity SPD-1 Smart Power Distributor comes with a full Deity Australia warranty.
